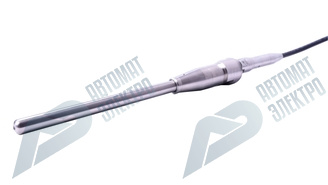

Raman Rxn-40 probe

532 нм, 785 нм, 1000 нм

Металл: сплав C276, нержавеющая сталь 316L или титан Grade 2
Окно: сапфир высокой чистоты

ATEX, CSA, IECEx

The Raman Rxn-40 probe is a sealed immersion probe for in situ Raman spectroscopy of liquid-phase samples in a laboratory or process plant setting. The process connection for the Raman Rxn-40 can be swaged, compression-mounted, flange-mounted, or installed in an Endress+Hauser flow cell, and is NeSSI compatible. These versatile options allow for direct insertion in slip-streams, drain-values, reactors, circulation loops, blend headers, and inlet or outlet pipework.

Chemical: reaction monitoring, blending, catalysis, feed and final product monitoring

Polymer: polymerization reaction monitoring, extrusion monitoring, polymer blending

Oil & Gas: fuel blending, fuel characterization

Pharmaceutical: API reaction monitoring, crystallization, polymorph, blending

Customizable to your process

Robust design with a range of process connections

In situ/no transfer lines or fast-loops required

Faster, simpler installation

Support for a range of chemical processes and corrosivity requirements

Ensures safety and meets regulatory requirements

Suitable for hazardous/classified environments
